Flanged mini indexing plungers
  • Flanged mini indexing plungers
Assembly of indexing plungers onto thin sheet material is a problem addressed with Elesa’s GN822.8 flanged mini units which are well suited to use on jigs, tools and other industrial equipment for quick accurate positioning to pre-established indexes.

Mounting on thin sheet is facilitated by the zinc die flange provided with two holes fo...

Description of the Product

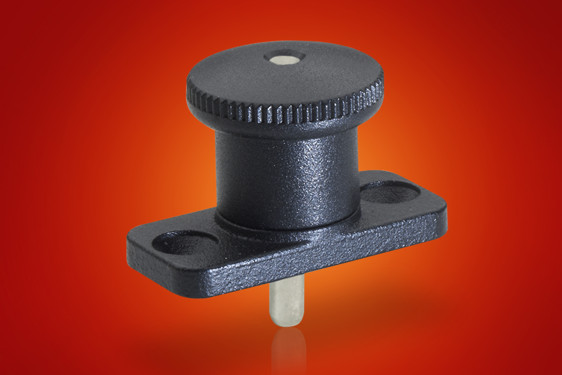

Assembly of indexing plungers onto thin sheet material is a problem addressed with Elesa’s GN822.8 flanged mini units which are well suited to use on jigs, tools and other industrial equipment for quick accurate positioning to pre-established indexes.

Mounting on thin sheet is facilitated by the zinc die flange provided with two holes for assembly by use of countersunk head screws.

The GN822.8 features a zinc die body and AISI 303 stainless steel pin/plunger with polyamide operating knob – it is available with pin-out at rest and pin-in at rest.


Price of the Product

Price not indicated

Technical Details

Further information regarding Elesa products may be found at: www.elesanow.co.uk or follow them on twitter: www.twitter.com/ElesaUK – also see www.youtube.com/elesauk.
